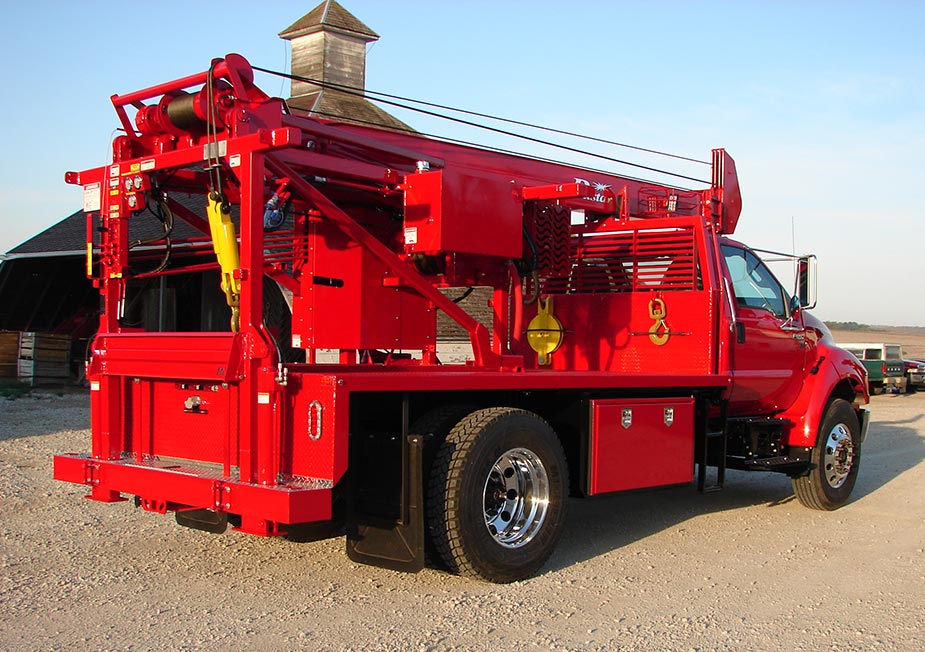

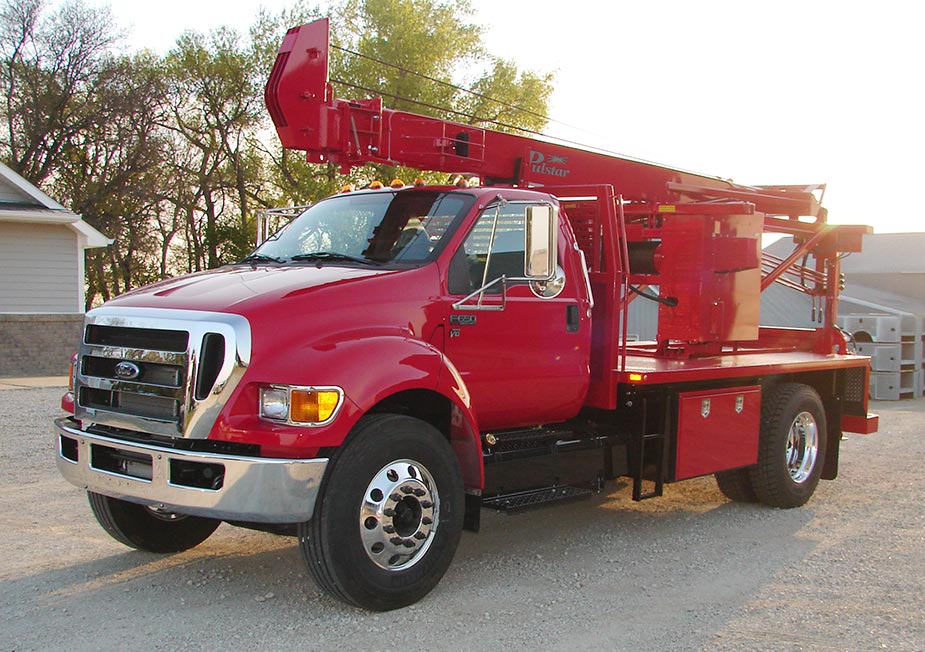

PULSTAR P20HD PUMP HOIST
PULLING
- 9,000 lbs. bare-spool pull (Single Line)
- 18,000 lbs. bare-spool pull (Double Line)
- 27,000 lbs. bare-spool pull (Triple Line)
PROPULSION
- Direct-mount PTO - transmission
HYDRAULICS
- Direct-mount PTO
- Gear or vane pump
- Open system valving
- 25 GPM max @ 2,500 PSI hydraulics
- Hydraulic valve failsafe bypass protection
MAIN WINCH
- Self-contained
- Sealed oil bath planetary
- Hydraulic disc brake
- Low-speed approximately 55 FPM @ 2,500 PSI
- High-speed approximately 110 FPM @ 2,500 PSI
- 9/16" HP wire rope with 7T and 11T swivel hook
- Inline weight
- Electronic 2-speed shift on the fly (optional)
TAILOUT WINCH
- Sealed oil bath gear reducer drive
- Wire rope and swivel hook
- Tethered remote control
REMOTE CONTROL
- Tethered remote control
RIG MAIN FRAME
- Pulstar-designed and engineered
- Load-tested and certified
MAIN DERRICK & EXTENSION STINGER
- 36' standard height
- 50' maximum extension height
- 8' max layback (increases with longer derrick)
- Load-tested and certified
CONTROL PANEL
- Electronic and manual hydraulic controls
- Gauges
- Identifiers
- Load rating plate
LEVELING HYDRAULIC CYLINDERS / JACKS
- (2) 24" stroke independently controlled / rear
- Holding lock valves
MAST ELEVATING HYDRAULIC CYLINDERS
- (2) 4" x 48" with holding lock valves
OVERALL DIMENSIONS
- 19', 6" (L) x 6' (W)
- Derrick up height (Mounted on a Class 5 Carrier): 37'
- Derrick down height (Mounted on a Class 5 Carrier): 10'
