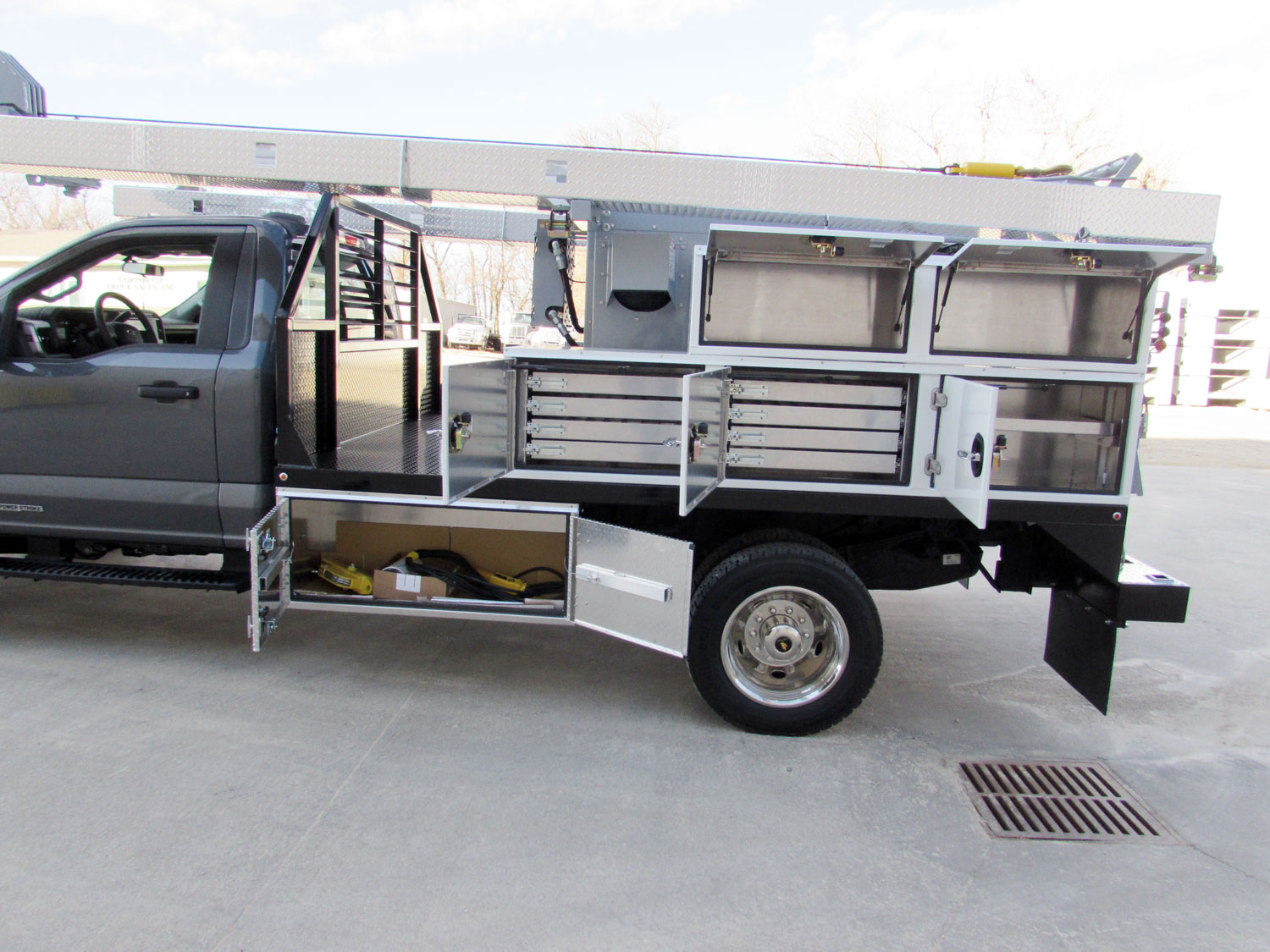

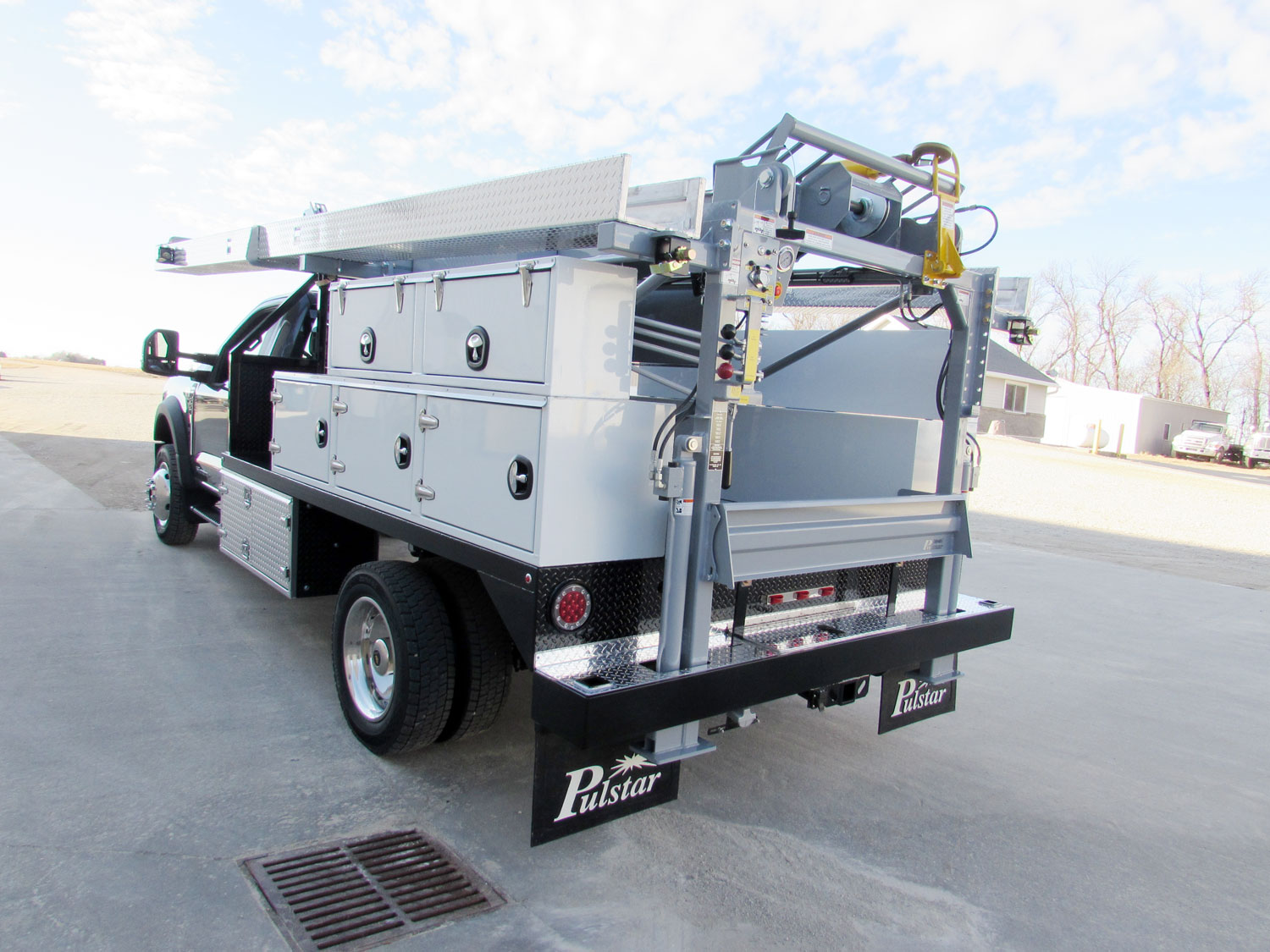

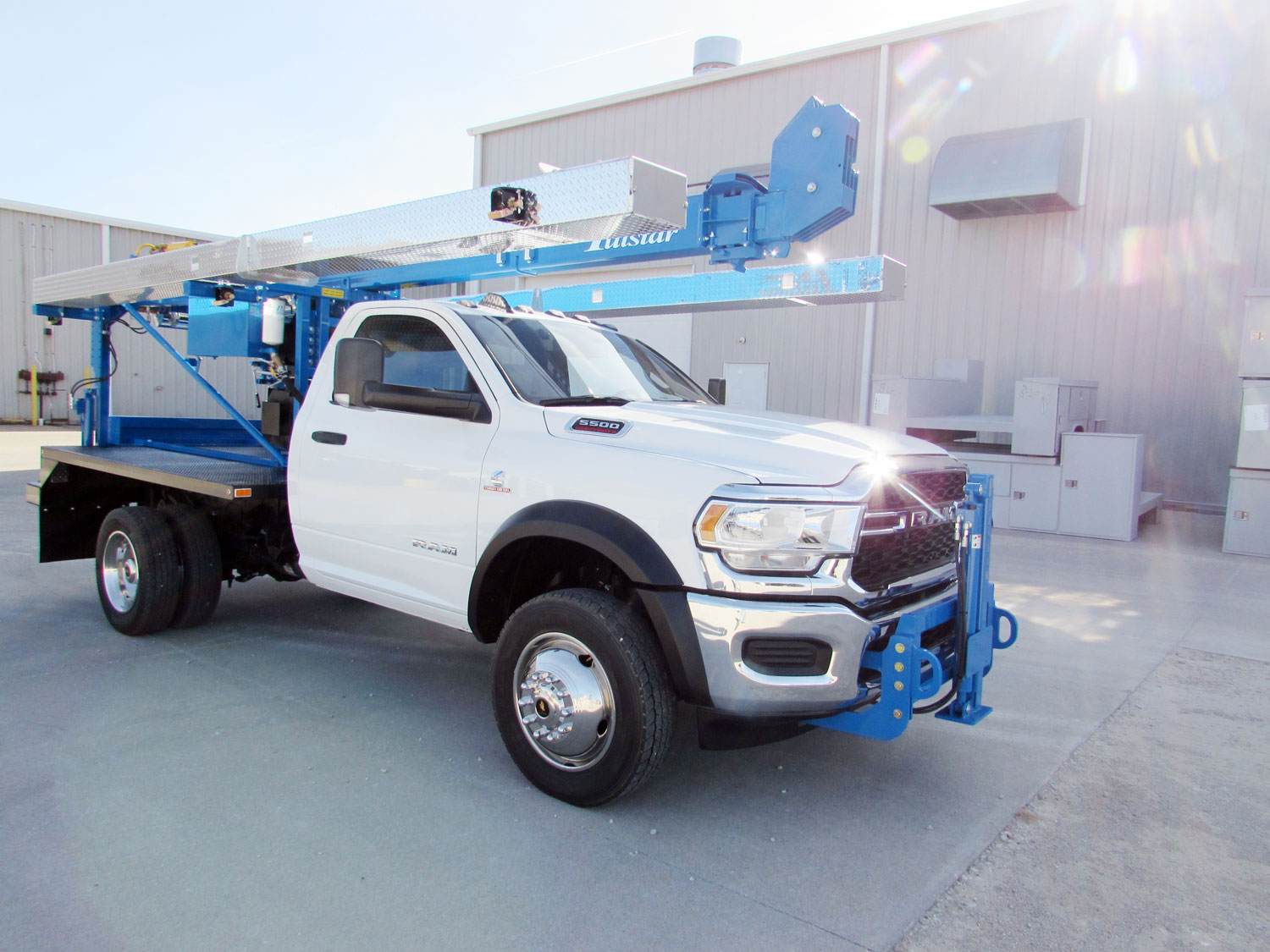

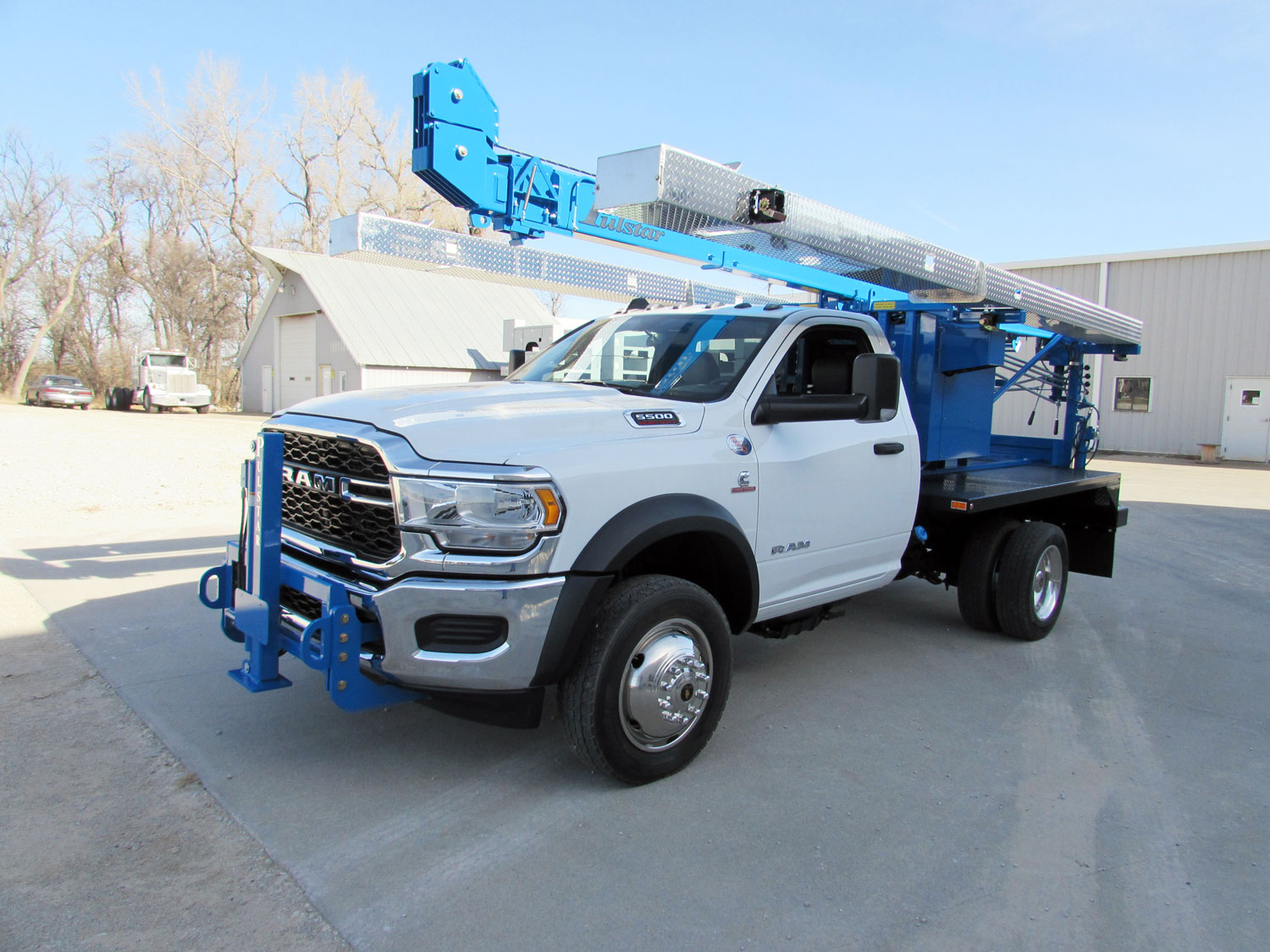

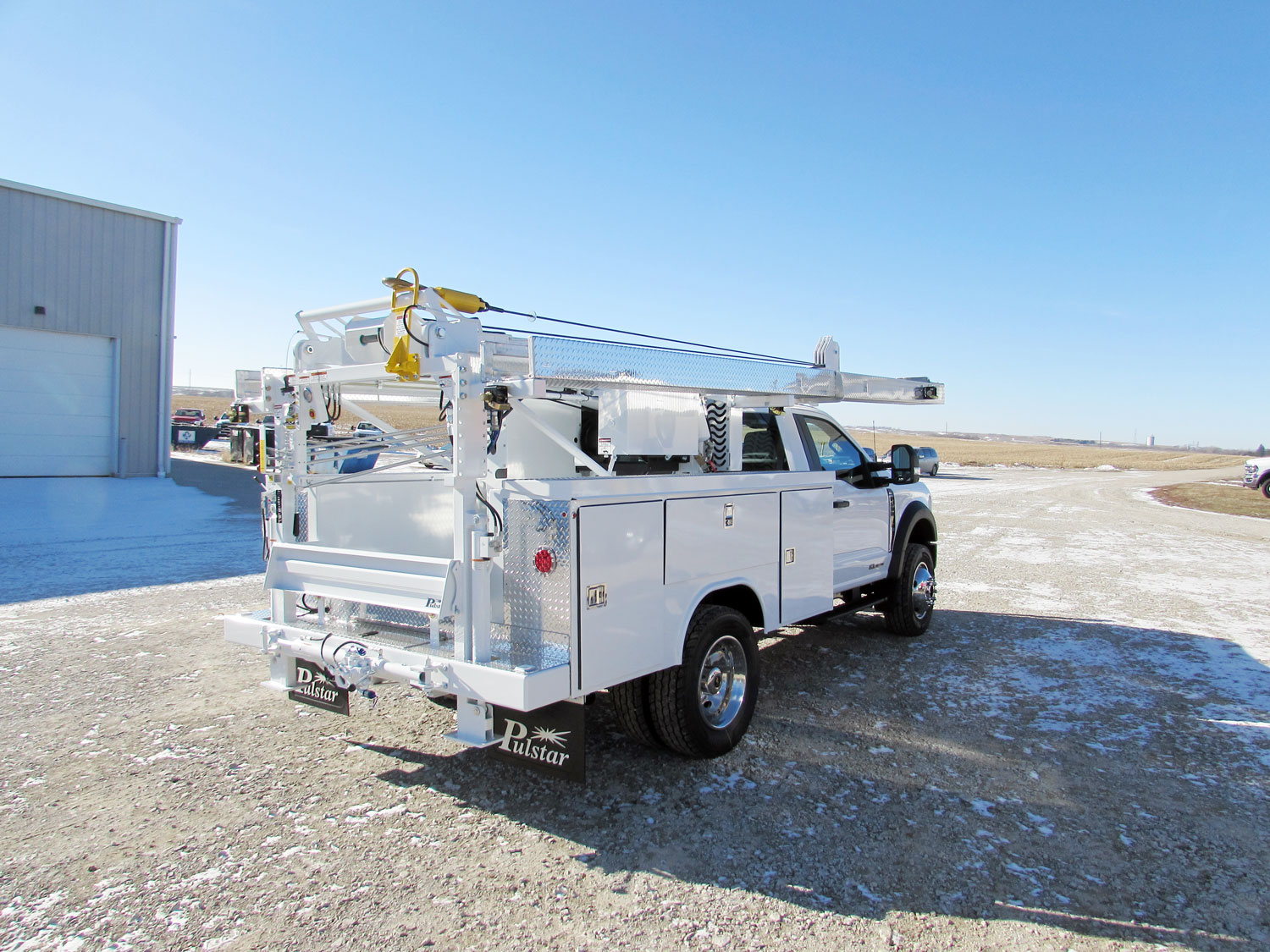

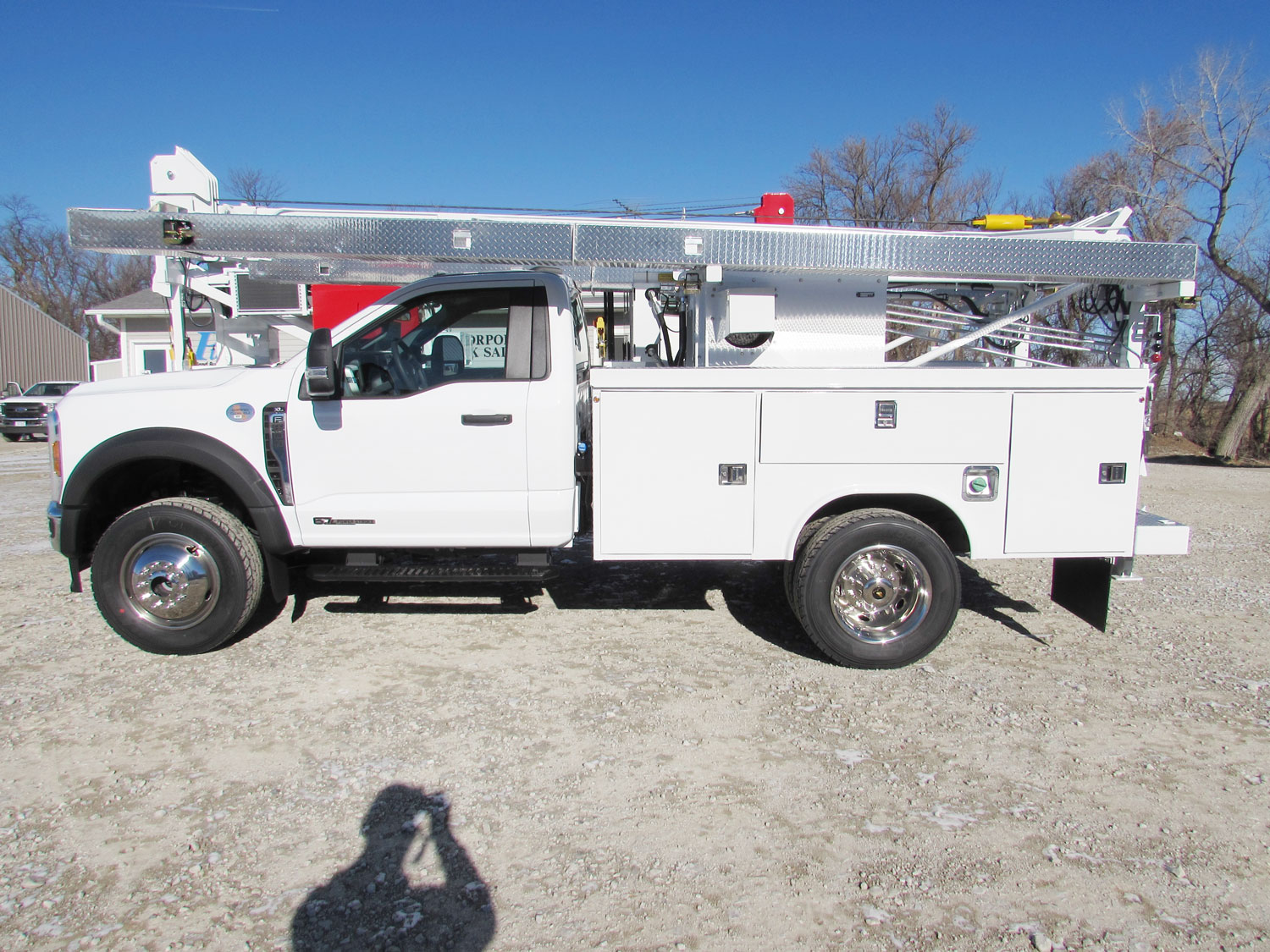

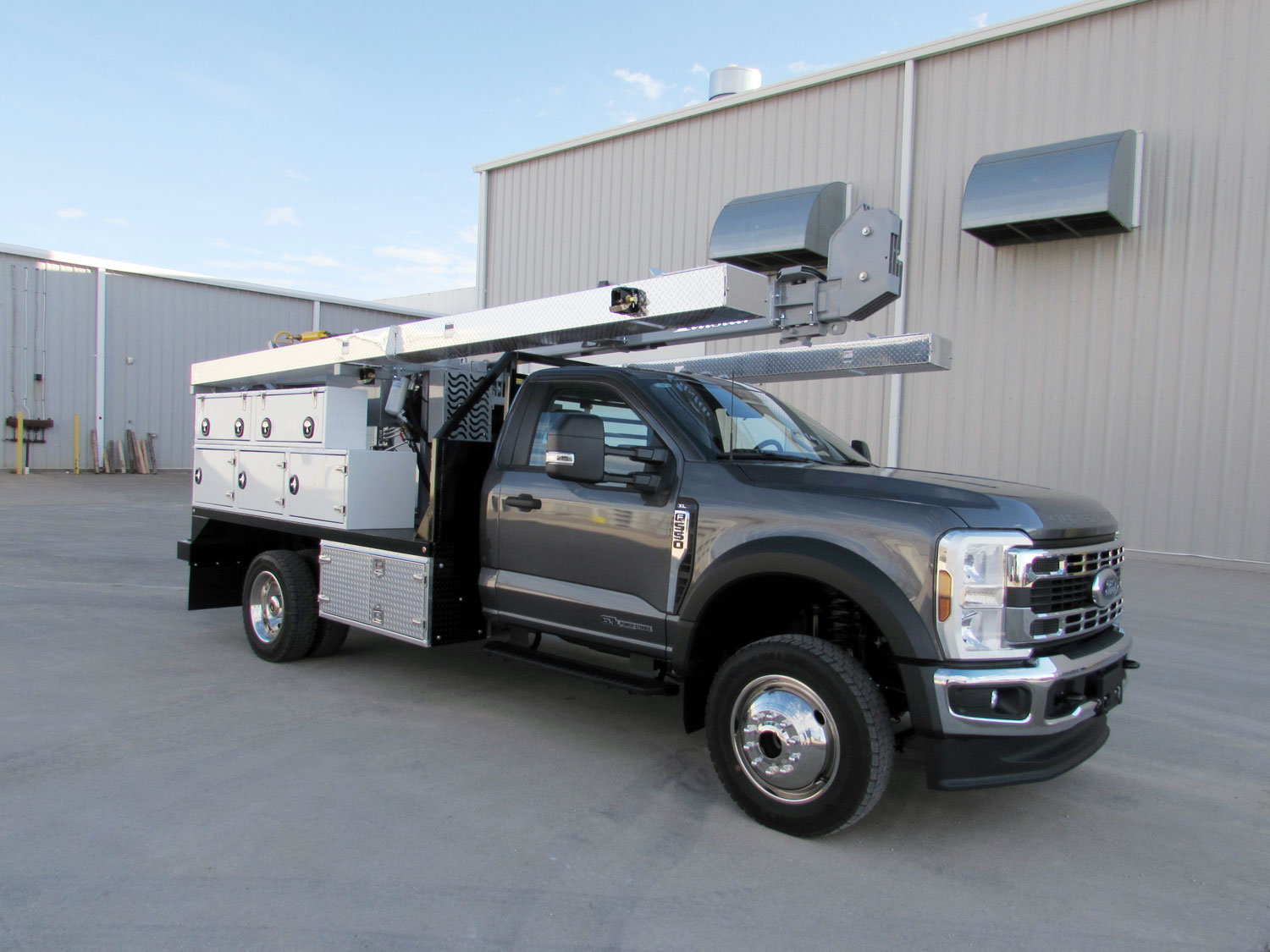

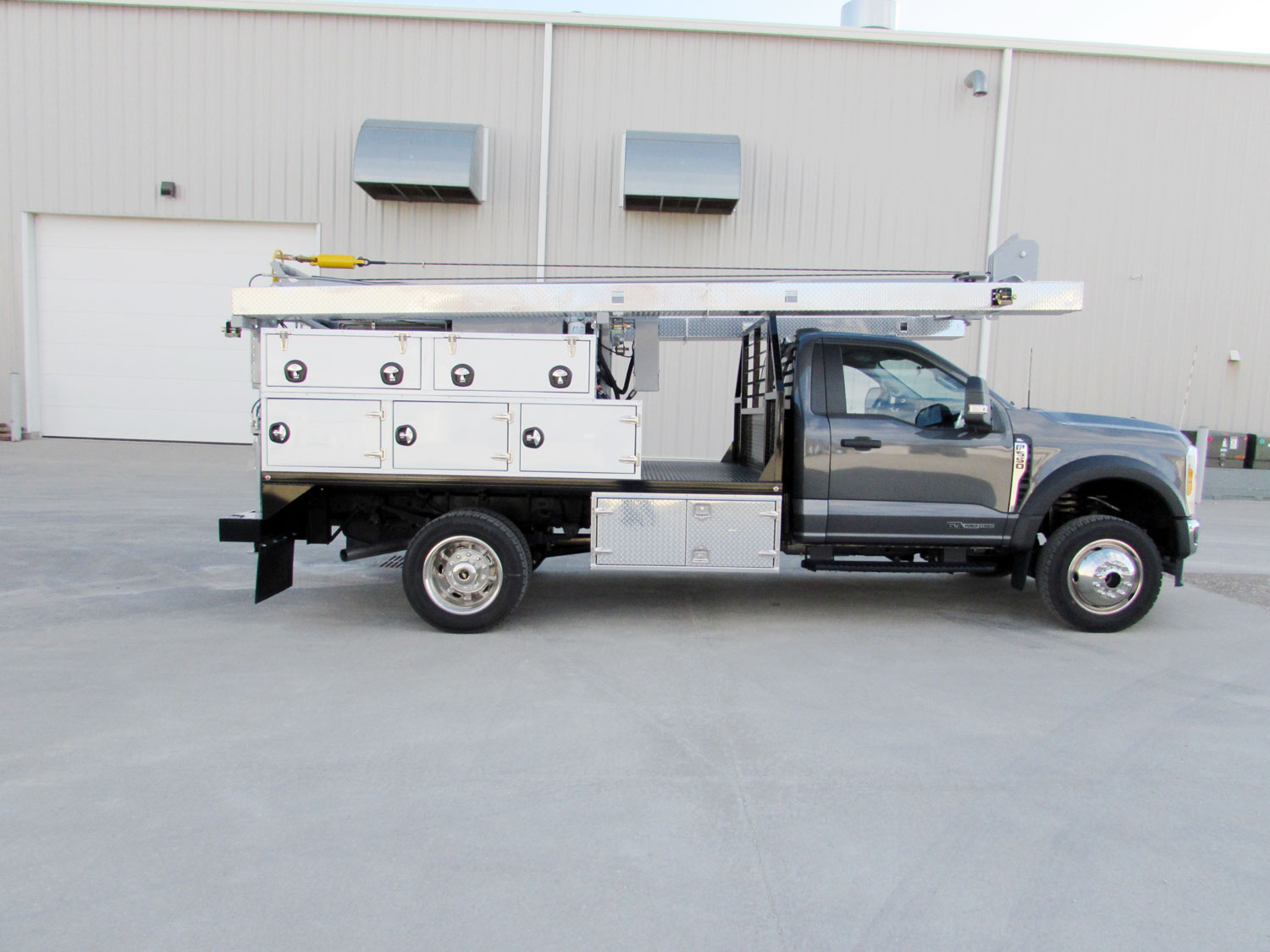

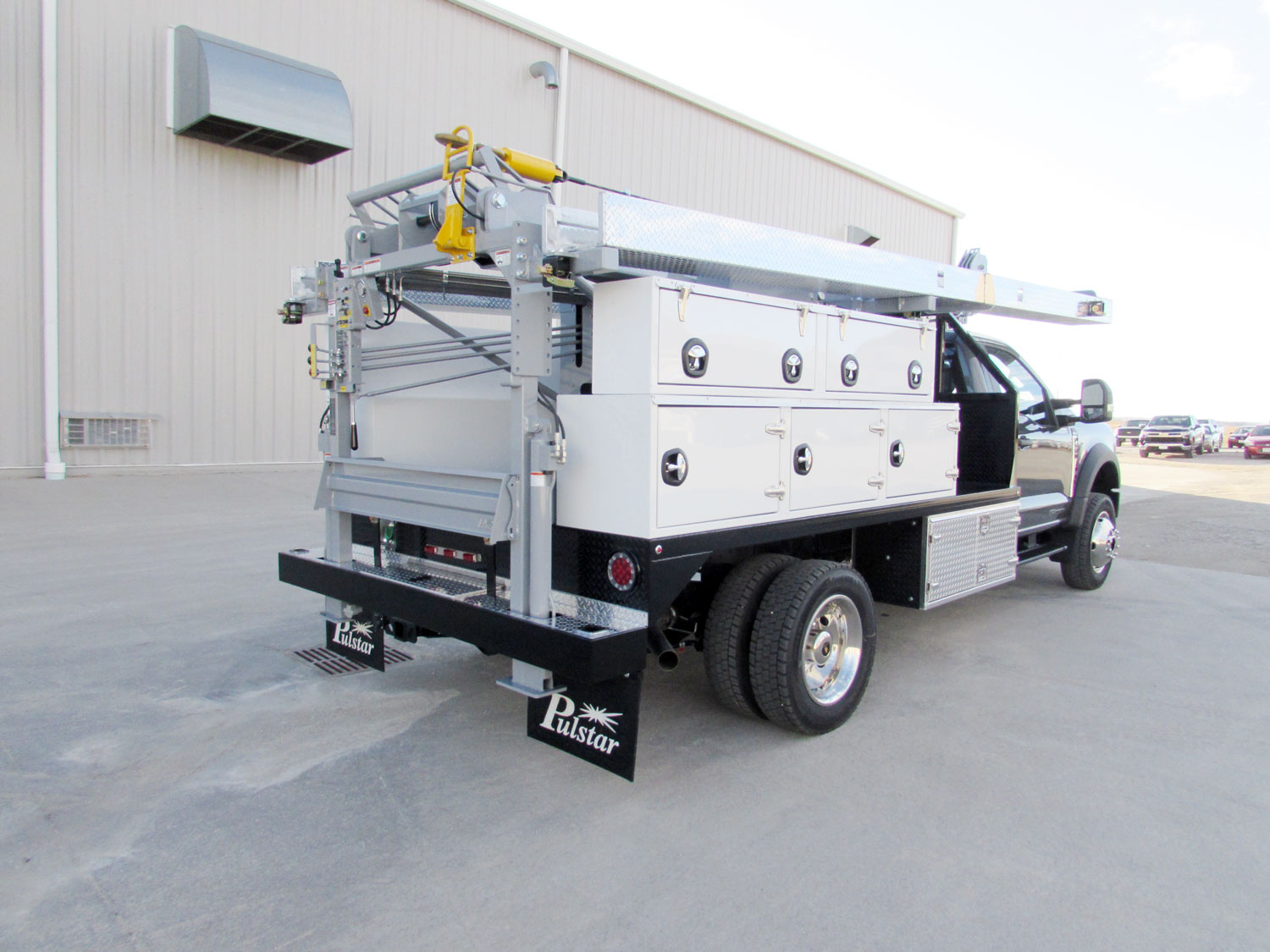

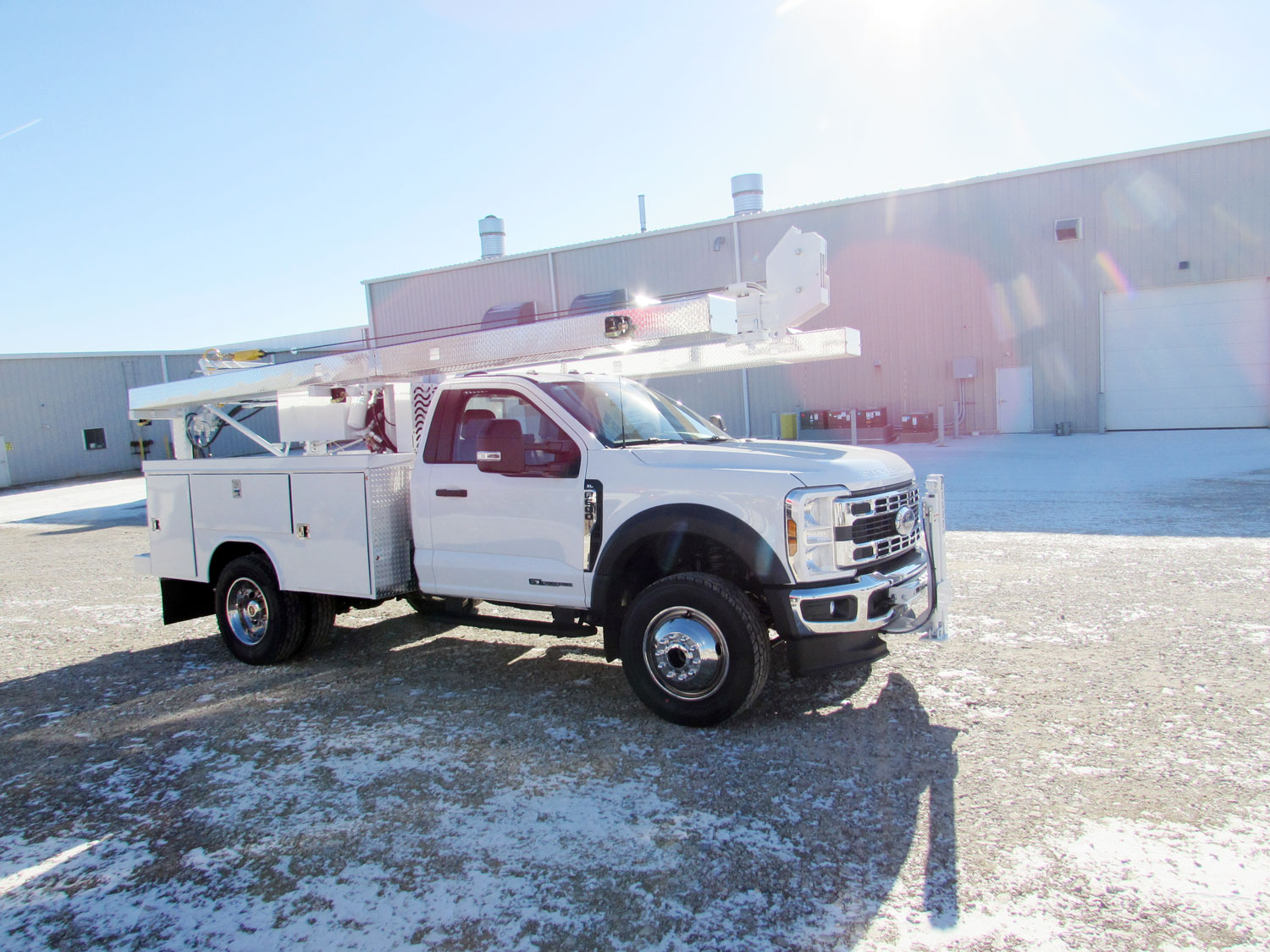

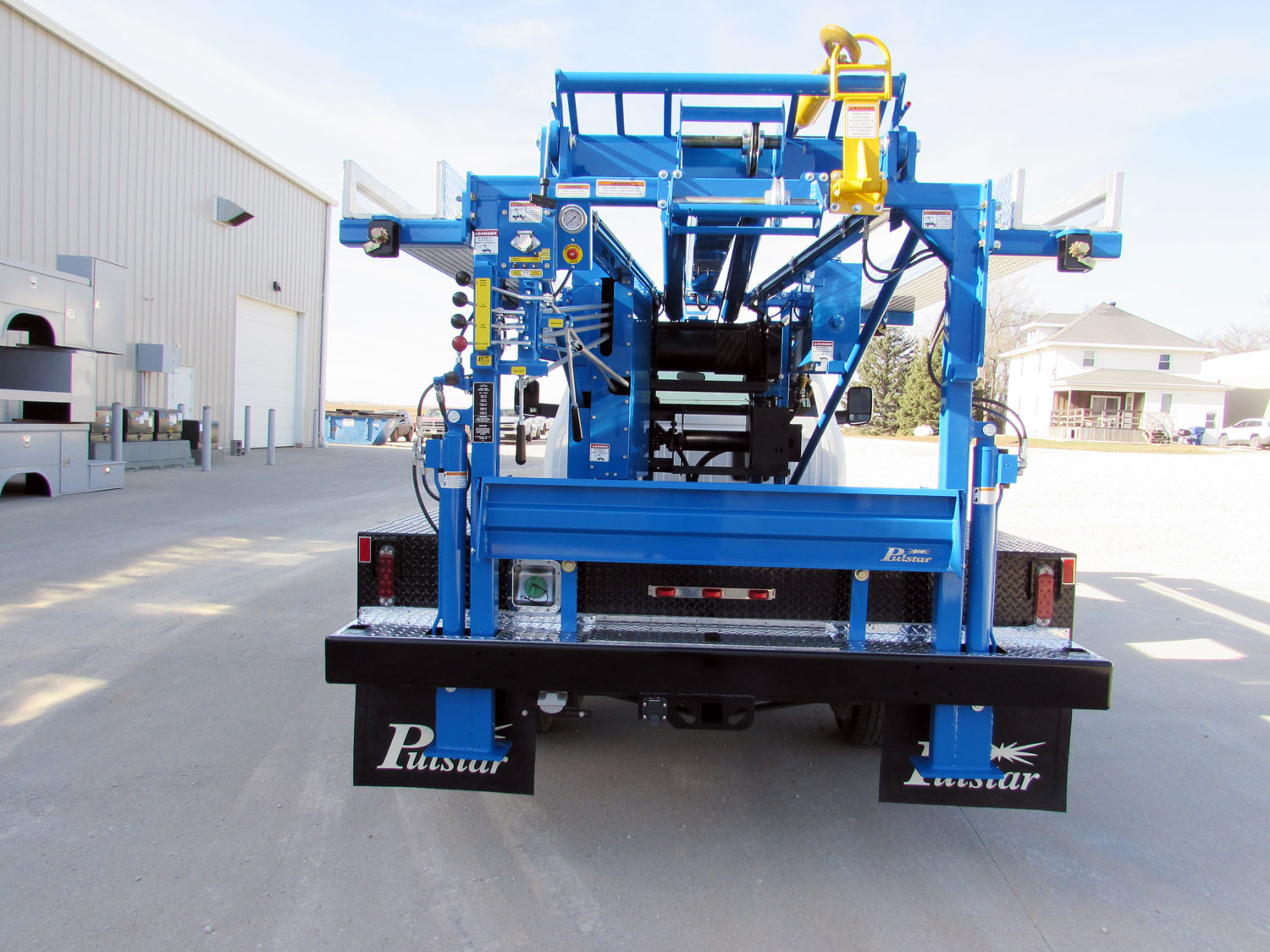

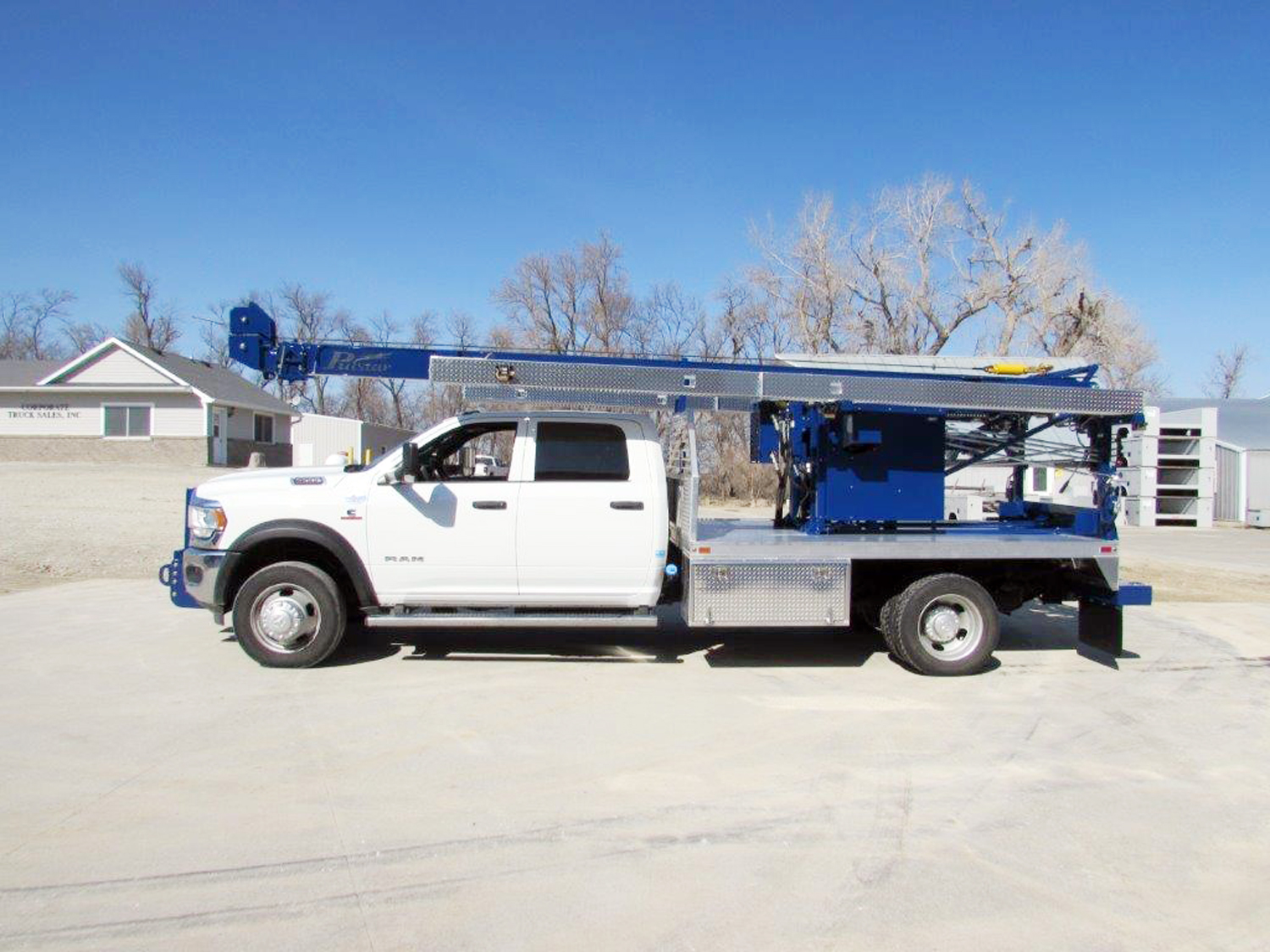

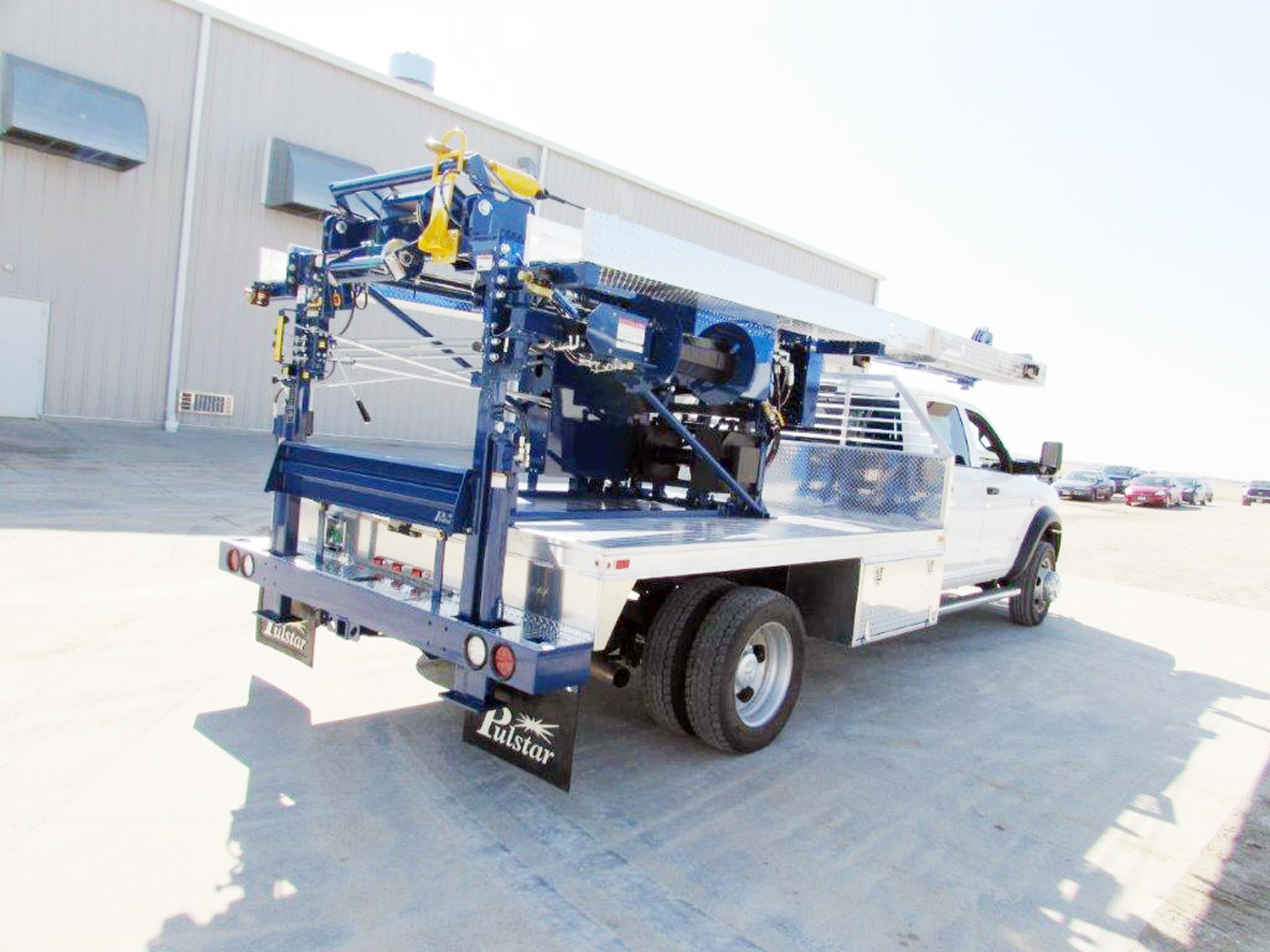

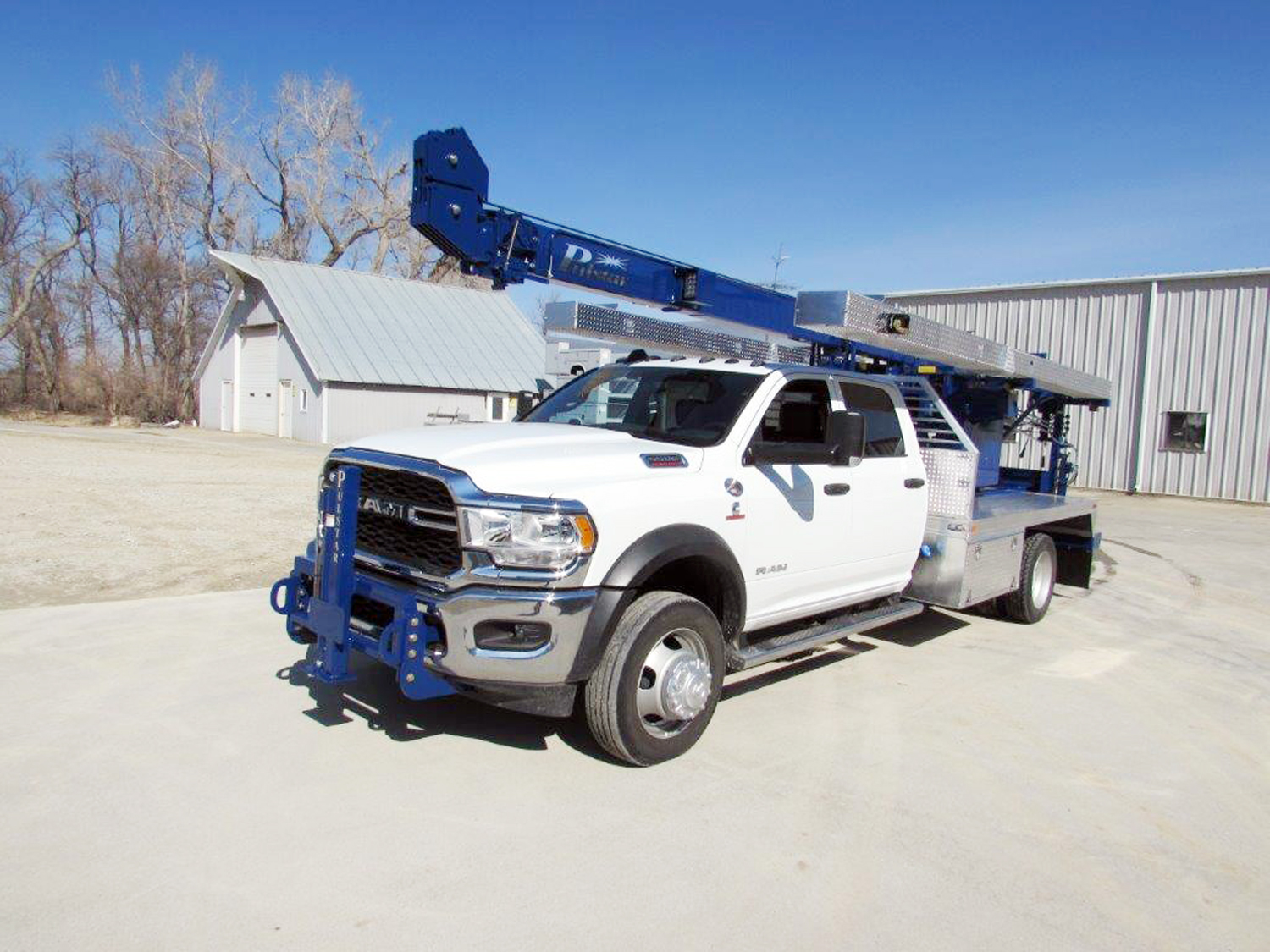

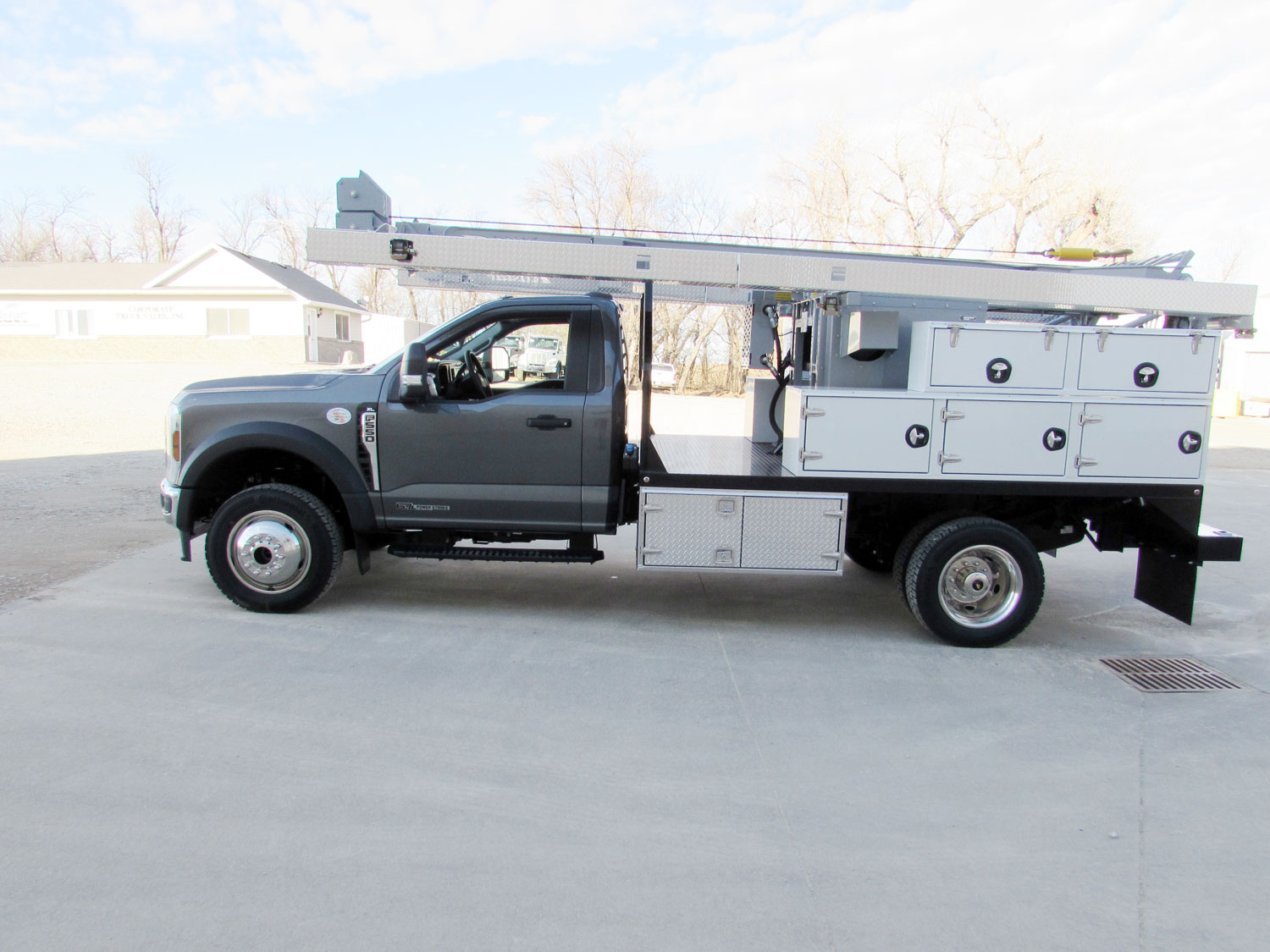

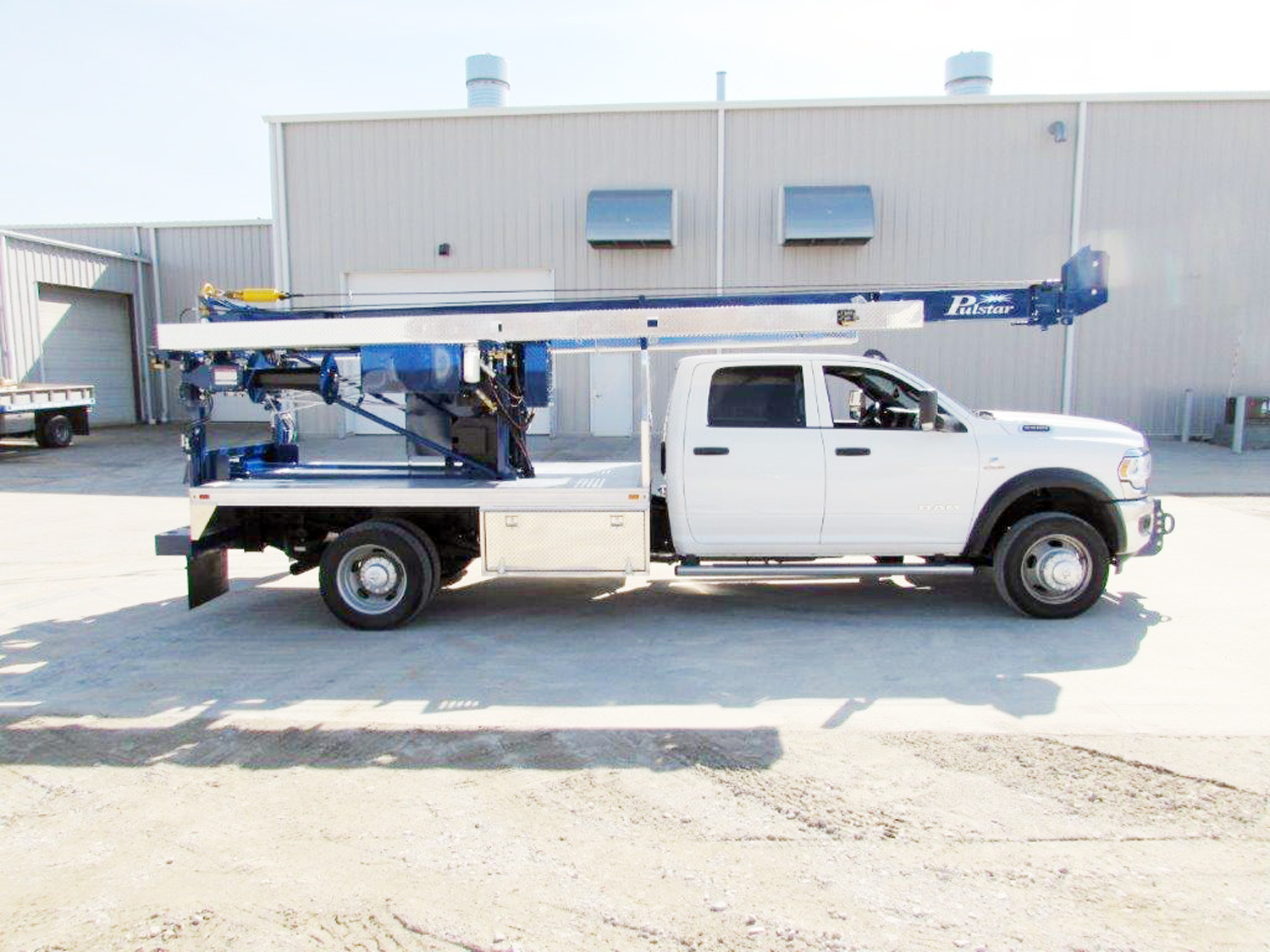

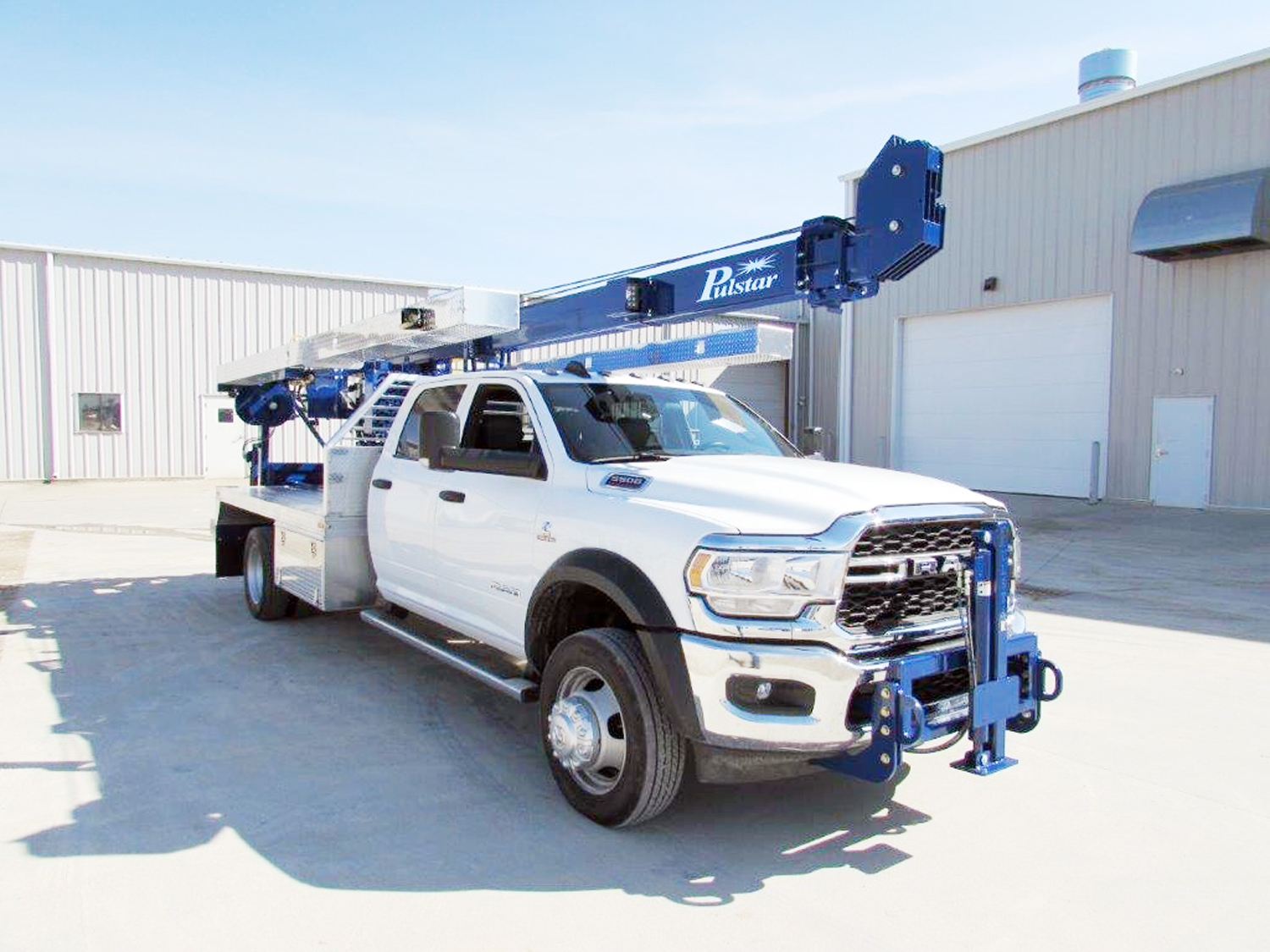

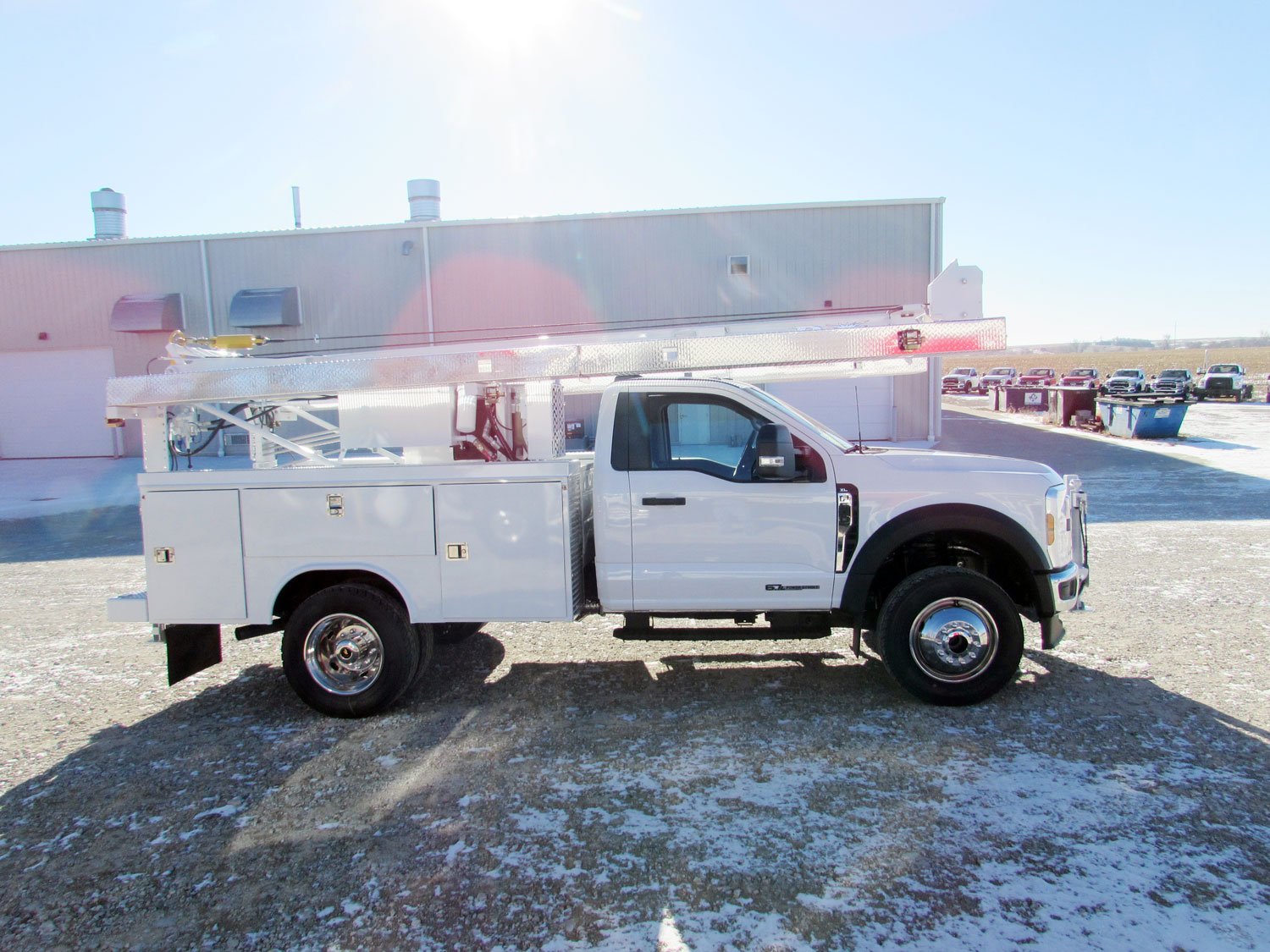

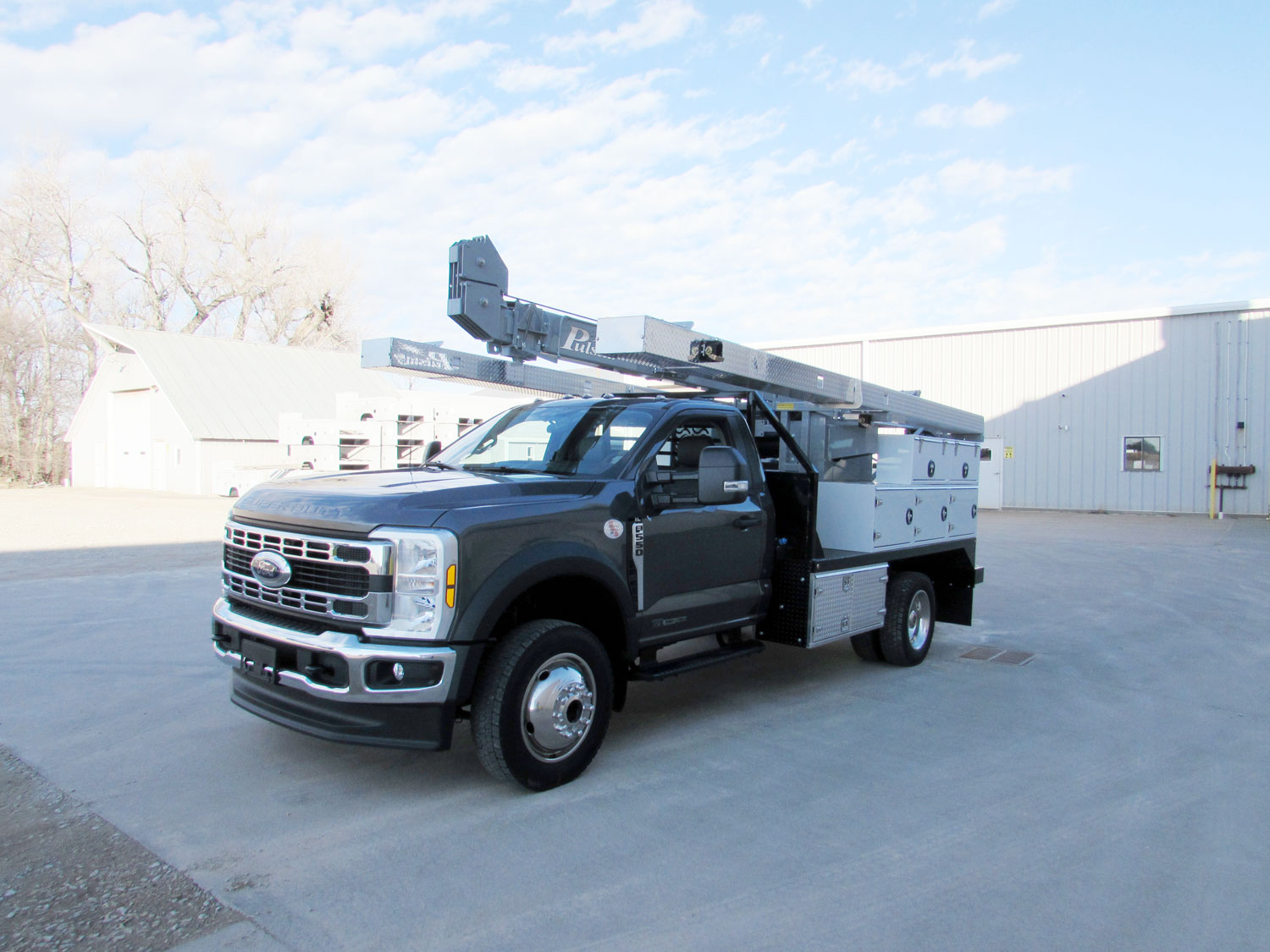

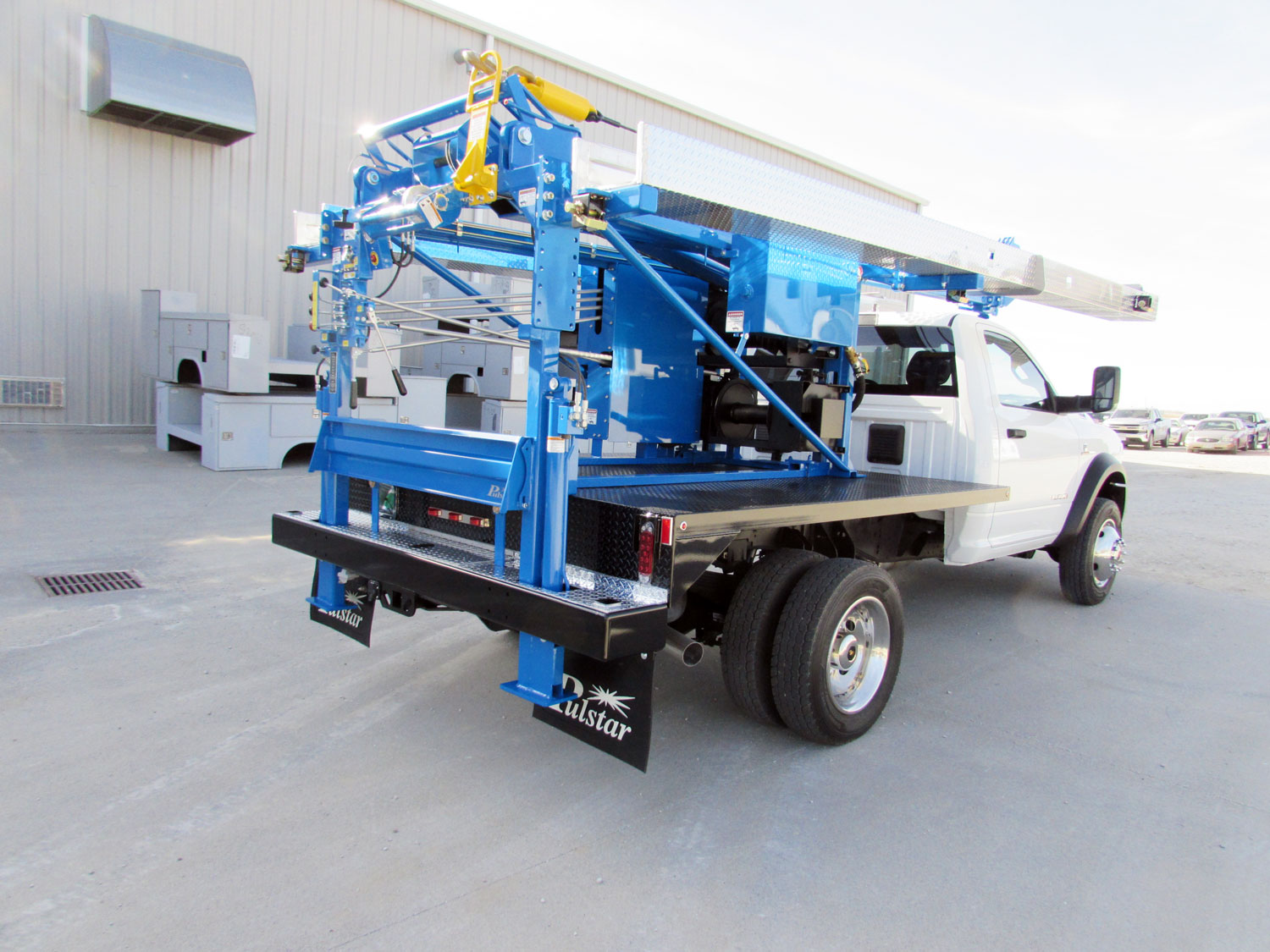

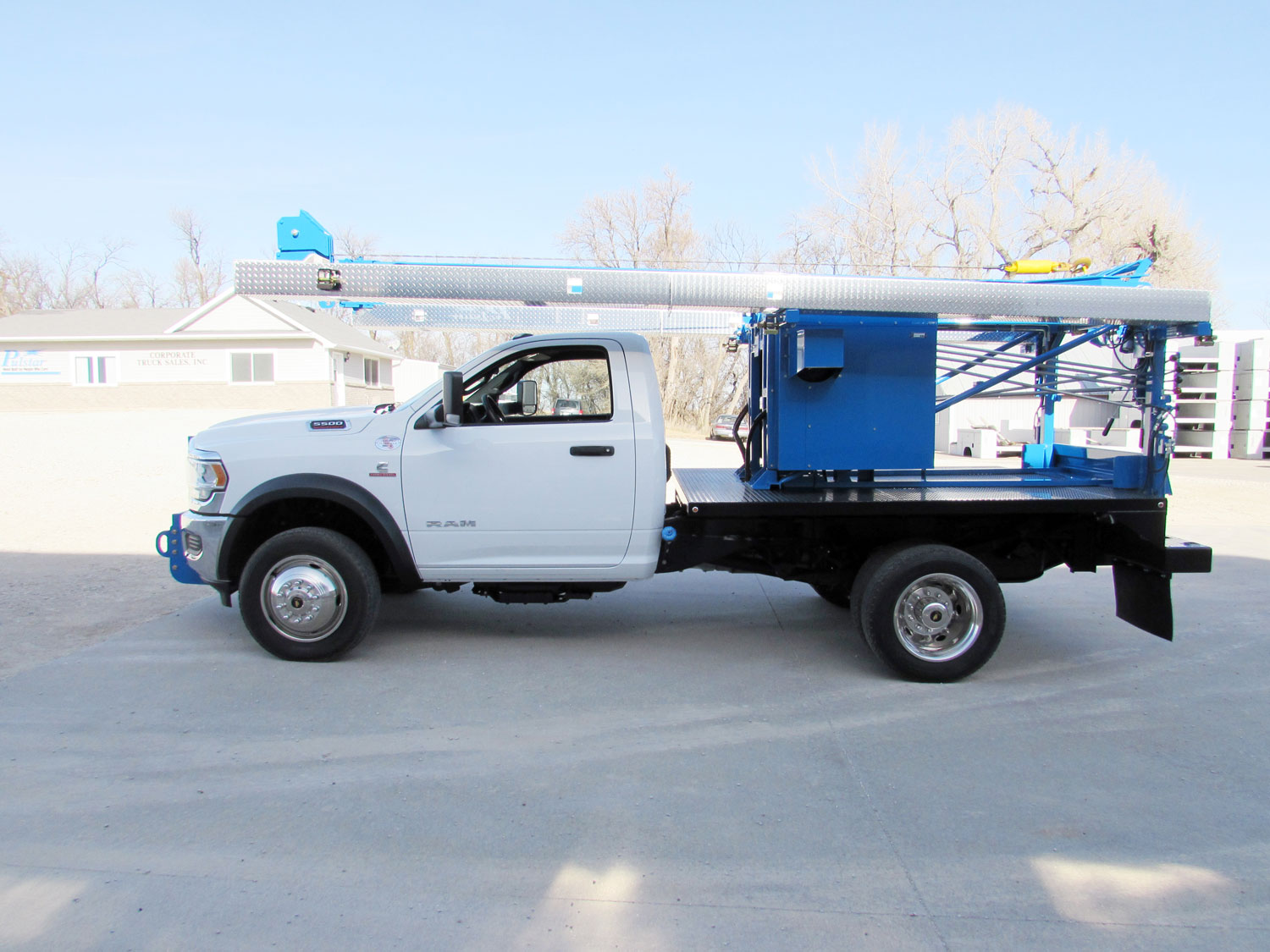

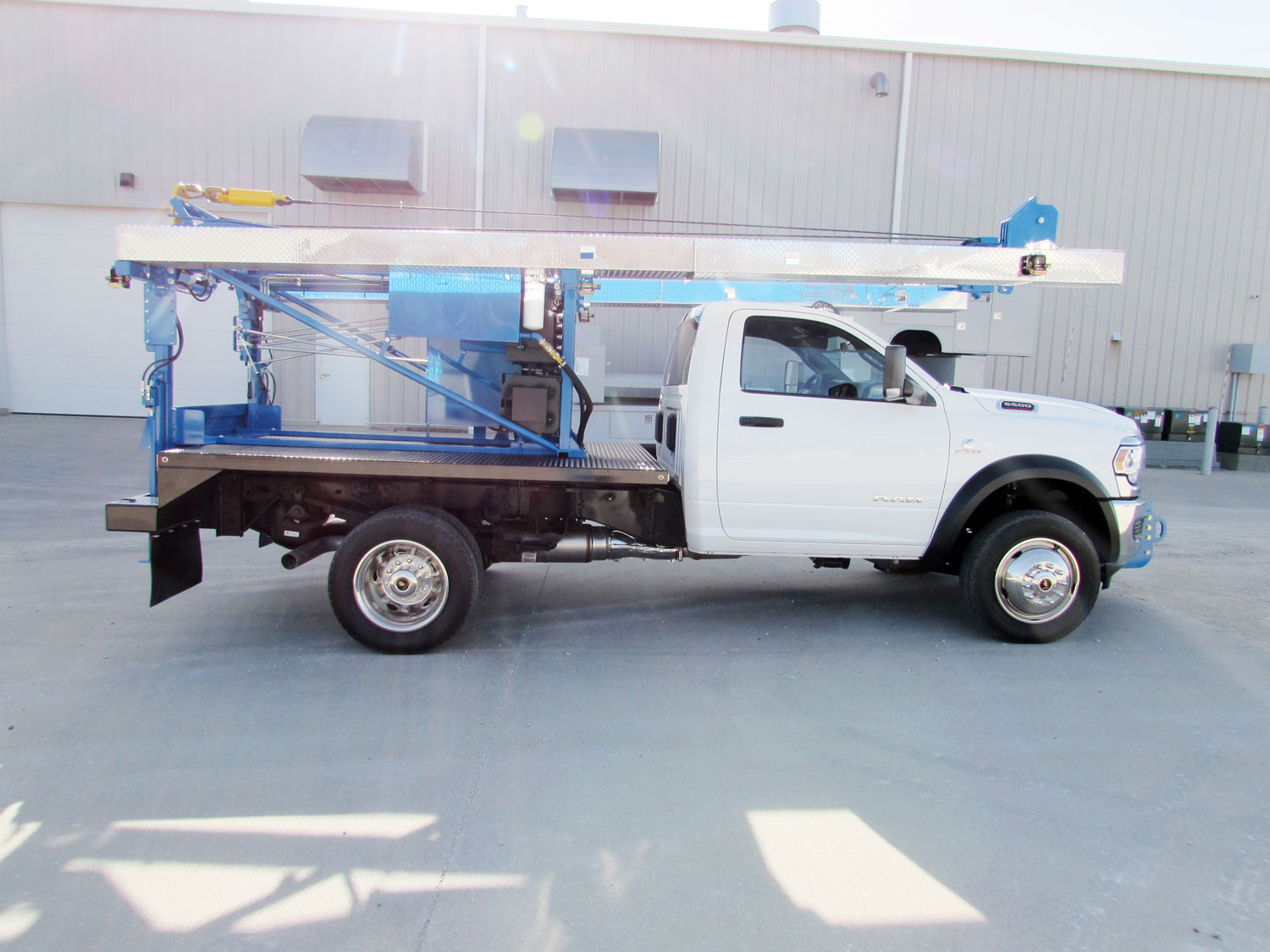

PULSTAR P8 PUMP HOIST

Customize This Rig

    PULLING
    • 4,000 lbs. bare-spool pull (Single Line)
    • 8,000 lbs. bare-spool pull (Double Line)
    • 12,000 lbs. bare-spool pull (Triple Line. Guide cable kit required)
    PROPULSION
    • Direct-mount PTO - transmission
    HYDRAULICS
    • Direct-mount PTO
    • Gear or vane pump
    • Open system valving
    • 25 GPM max @ 2,500 PSI hydraulics
    • Hydraulic valve failsafe bypass protection
    MAIN WINCH
    • Self-contained
    • Sealed oil bath planetary
    • Hydraulic disc brake
    • Low-speed approximately 70 FPM @ 2,500 PSI
    • High-speed approximately 140 FPM @ 2,500 PSI
    • 7/16" HP wire rope with 7T swivel hook
    • Inline weight
    REMOTE CONTROL
    • Tethered
    RIG MAIN FRAME
    • Pulstar-designed and engineered
    • Load-tested and certified
    MAIN DERRICK & EXTENSION STINGER
    • 37' standard height
    • 44' maximum extension height
    • 11' max layback
    • Load-tested and certified
    CONTROL PANEL
    • Electronic and manual hydraulic controls
    • Gauges
    • Identifiers
    • Load rating plate
    LEVELING HYDRAULIC CYLINDERS / JACKS
    • (2) 24" stroke independently controlled / rear
    • Holding lock valves
    MAST ELEVATING HYDRAULIC CYLINDERS
    • (2) 4" x 48" with holding lock valves
    OVERALL DIMENSIONS
    • 20' (L) x 6' (W)
    • Derrick up height (Mounted on a Class 4 or Class 5 Carrier): 38'
    • Derrick down height (Mounted on a Class 4 or Class 5 Carrier): 9', 6"
